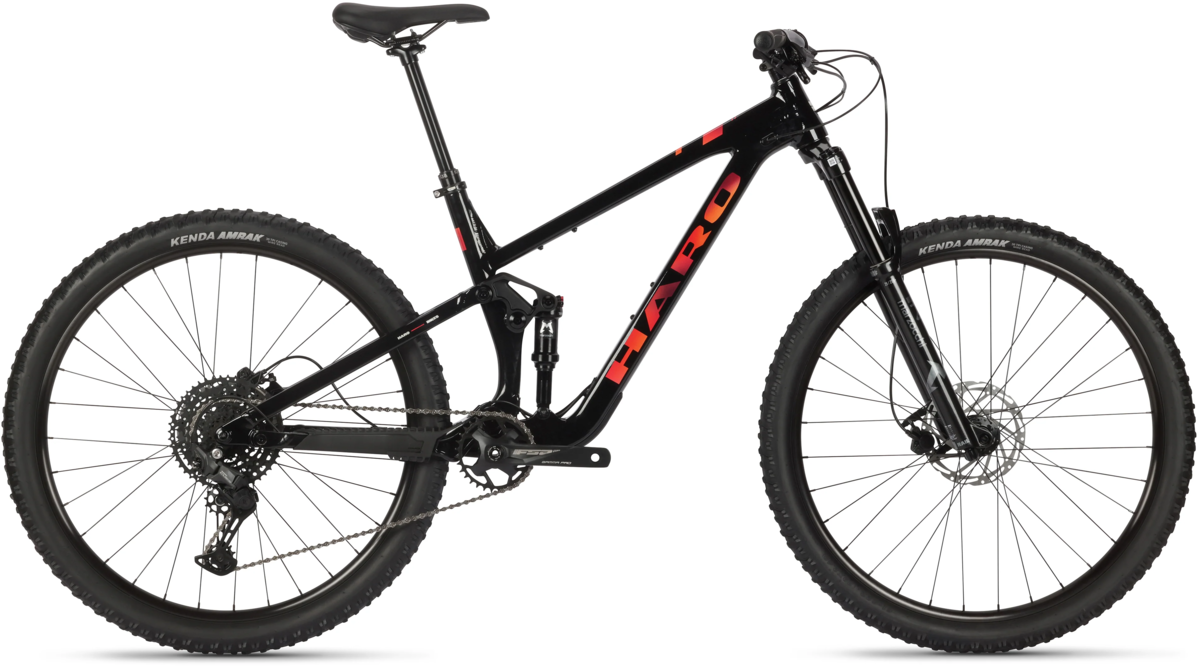

Haro Daley Alloy 3 - 2025

Haro Daley Alloy 3
$1,999.00
Color: Black/Amber
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This item is not permitted to be shipped, however, it can be purchased online and picked up at your convenience. In-store pickup orders may take up to 10 days to arrive at a specified location.

Details

Named after one of our go-to trail networks, the Daley is our all-new, all-mountain 29er, ready for the climb & grind. Starting with our exclusive aluminum frame design, the Daley is built on a trusted suspension platform with 150/140mm travel, custom tuned for each spec level. This is our go-to all mountain machine: Playful on the trails, with maximum traction through the turns and on the climbs. Ready to launch the jumps, turn and burn. No gimmicks, nothing wacky, just everything you need for days in the dirt.

Geometry Chart:
SIZESMLXL
Seat Tube (C-T) 361mm 410mm 448mm 473mm
Top Tube (Effective) 553mm 590mm 617mm 644mm
Head Tube Angle 64.5° 64.5° 64.5° 64.5°
Seat Tube Angle 78° 78° 78° 78°
Chainstay Length 428mm 445mm 445mm 445mm
BB Drop 23mm 33mm 33mm 33mm
Wheelbase 1172mm 1237mm 1266mm 1296mm
Head Tube Length 90mm 100mm 110mm 120mm
Standover 691mm 685mm 705mm 705mm
Stack Height 579mm 610mm 619mm 628mm
Reach 430mm 460mm 485mm 510mm
Axle to Crown 544mm 561mm 561mm 561mm
Fork Offset 44mm 44mm 44mm 44mm
Stem Length
Bar Width
Crank Length
Wheel Size 27.5 29 29 29

Specs

Frame Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Fork Marzocchi Bomber Z2, Rail - Sweep Adjust, Kabolt 110 x 12mm thru-axle, 44mm offset, 150mm travel
Rear Shock Marzocchi Inline R, 140mm travel
Wheels Double-wall alloy 32h, I25
Tires CST L-CAT DK27 2.35" front & rear
Brakes Tektro Gemini 2-piston hydraulic disc with 180mm rotors
Crankset FSA Gamma Pro 165mm, 32T chainring
Bottom Bracket FSA Mega EXO 73mm
Shifters Shimano Cues Rapid Fire 10-speed
Cassette/Freewheel Shimano Cues 11-48T
Rear Derailleur Shimano Cues Shadow Plus 10-speed
Headset FSA Orbit 1.5E ZS/ NO.57E tapered headset, 44/56mm head tube
Brake Levers Tektro Gemini
Handlebars Alloy 6061-T6 Riser bar, 800mm wide, 20mm rise, 6° back sweep, 4° upsweep
Chain KMC E Glide
Tape/Grips WTB Trail II,140x30mm
Stem 6061-T6 Forged Alloy 31.8 ID, 45mm reach
Seatpost Kind Shock I900 34.9 OD. Sizes: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm
Saddle WTB Volt Medium, w/steel rails
Pedals Sold Separately
Hubs Alloy hub shells, 2 sealed bearings, 110x15 Front, 148x12 Rear

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black/Amber / Medium / 29-inch 691840152402 15240 DAL29139625M
Black/Amber / Large / 29-inch 691840152419 15241 DAL29657695L
