Details

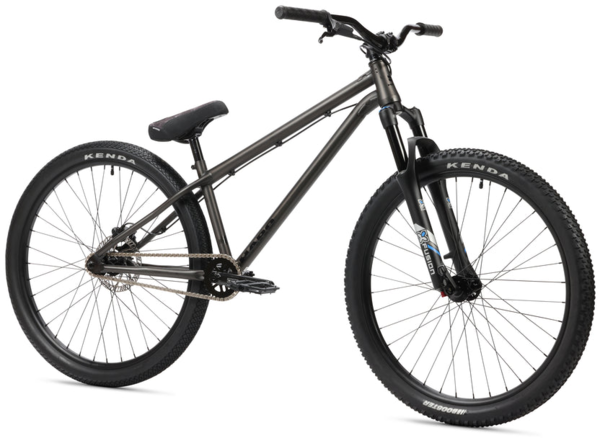

Level up. The Haro Steel Reserve 2 Dirt Jumper features an all-new, all-chromoly frame with a tapered, integrated head tube and gusseted top and down tubes. Other high-end details include cable guides, an integrated seat clamp, and chain tensioners to keep it all tight and rattle-free. Updated from previous SR frames with a longer top tube for more room in the front end, balanced with a short rear triangle, the SR2 is just as stable in the air as it is tracking through the turns. A 100mm travel Slant 34 fork takes the brunt of the landings, with BMX-inspired parts like our Baseline 3-piece chromoly cranks, 28T forged sprocket, Pivotal seat/post and Premium CK grips. Sealed bearings all around, double-wall 36h rims, and a hydraulic disc rear brake slows this rig down when and if the need arises.
FEATURES:
- Full chromoly frame w/integrated HT, Euro BB, integrated chain tensioners
- SLANT 34 fork, Thru-axle 15mm, tapered alloy steerer, 1-1/8"-1.5", 26" x 100mm Travel
- Haro Baseline 3-pc chromoly 8-spline. 165mm
- 28T Forged alloy sprocket
- 28/14
- Baseline Halflink chain
- Alloy 6061 PG bars; 50mm rise; 35mm bore; 780w; 9° back; 5° up
- Premium "CK" Grips
- 26", 36 Hole Alloy, Double Wall, Pinned 30 Inner Width
- Front - 26x2.4" Kenda booster SRC / Rear - 26x2.25" Kenda 360 SRC
- Tektro Auriga Hydraulic Disc Brake; 160mm Rotor
SIZE | |
---|---|
Seat Tube (C-T) | 320mm |
Top Tube (Effective) | 586.5mm |
Head Tube Angle | 69° |
Seat Tube Angle | 67.5° |
Chainstay Length | 399mm |
BB Drop | 17.5mm |
Wheelbase | 1064.5mm |
Head Tube Length | 112mm |
Reach | 415mm |
Axle to Crown | 478mm |
Fork Offset | 40mm |
Specs
Frame | 100% Chromoly frame with integrated headtube, Euro BB, integrated chain tensioners |
---|---|
Fork | X-Fusion SLANT 34, 15mm thru axle, Alloy Tapered Steerer, 100mm Travel |
Wheels | 26", 36 Hole Alloy, Double Wall, Pinned 30mm Inner Width |
Hubs |
Front Hub: CNC Alloy Sealed Bearing 15mm through axle Rear Hub: Alloy sealed Cassette |
Tires | Front - 26x2.4" Kenda booster SRC, Rear - 26x2.25" Kenda 360 SRC |
Bottom Bracket | Double row sealed bearing Euro BB |
Crankset | Baseline 8-Spline Chromoly 165mm |
Chain | Baseline Halflink Chain |
Brakes | Tektro Auriga Hydraliuc Disc Brake 160mm Rotor |
Handlebars | 6061 Aluminum 50mm rise, 35mm clamp, 780mm width, 9° back, 5° up |
Tape/Grips | Premium "CK" Grips |
Stem | Aluminum 50mm reach, 35mm clamp |
Headset | FSA 45° X 45° ACB Sealed 1-1/8" - 1.5" |
Seatpost | 27.2 Alloy Pivotal |
Saddle | Baseline Pivotal |
Pedals | Polycarbonate with replaceable pins |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black / One Size / 26-inch | 691840148658 | 14865 | HAR23941959K |
