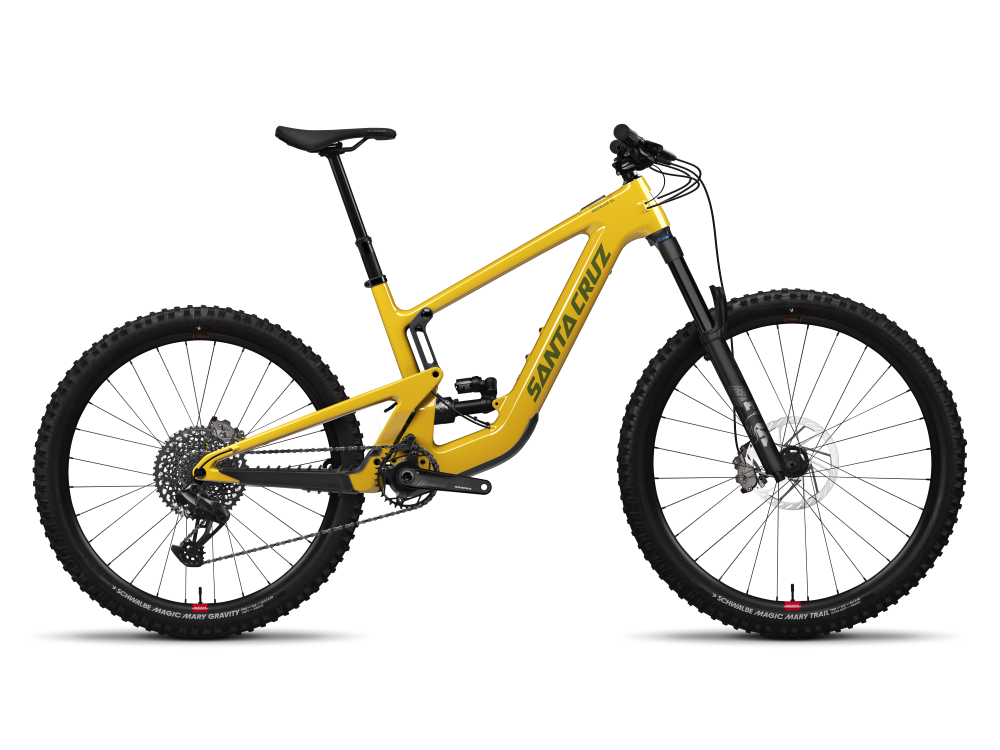

Santa Cruz Heckler SL C GX - 2025

Santa Cruz Heckler SL C GX
$9,299.00
Color: Gloss Mustard Yellow
Size: Medium
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable
This item is not permitted to be shipped, however, it can be purchased online and picked up at your convenience. In-store pickup orders may take up to 10 days to arrive at a specified location.

Details

On and on and on and on...

The full-power Heckler ebike is the definitive all-day capable, trail focused, gravity inclined ebike. Its torquey motor and huge 720 Wh battery allows riders to access previously unreachable trails, unlock less-used trails and cramming more into less time.

FULL-POWER
The Shimano EP801 system provides 85 Nm of max torque and peak power up to 600 Watts. This makes the latest generation of Shimano systems one of the most powerful systems available.

LONG RANGE
The Heckler pairs this mighty motor with a huge 720 Wh battery that can be removable for hot swaps or charging. Your arms will be tired before the battery runs dry.

CONTROL AT YOUR FINGERTIPS
Four assist modes (Walk, Eco, Trail, Boost) are accessible via an ergonomic switch on the handlebars. The Shimano ETUBE PROJECT app also allows riders the ability to fully customize the system support wirelessly.

Sizes:
SMLXLXXL
Reach | hi/lo430/427 455/452475/472495/492520/517
Stack | hi/lo607.3/609 615.8/618629.4/632647.5/650665.6/668
Head Tube Angle | hi/lo64.8°/64.5° 64.8°/64.5°64.8°/64.5°64.8°/64.5°64.8°/64.5°
Seat Tube Length390/390 405/405430/430460/460500/500
Front Center | hi/lo760.6/761 780.9/781807.3/807835.8/736869.4/869
BB Height | hi/lo346/342 346/342346/342346/342346/342
BB Drop (front) | hi/lo12 30/2630/2630/2630/26
BB Drop (rear) | hi/lo8 45516455164551645516
Wheelbase | hi/lo1205.6/1207 1225.9/12271252.3/12531280.8/12821314.4/1315
Rear Center | hi/lo445/446 445/446445/446445/446445/446
Head Tube Length130/130 100/100115/115135/135155/155
Top Tube Length | hi/lo571.4/572 599/600623.6/625644.6/646673.5/675
Seat Tube Angle | hi/lo76.9°/76.7° 76.8°/76.6°76.7°/76.4°77°/76.7°77°/76.8°
Standover Height | hi/lo720/716 745/741743/740741/737741/738

Specs

Motor Fazua Ride 60
Battery Fazua 430 Wh Integrated Battery
Fork FOX 38 Float Performance Elite, Grip X2, 160mm
Hubs Front: E13 SL, 15x110, 6-Bolt, 32h Rear: E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Rims Front: Reserve 30|HD AL 6069 -or- Raceface ARC 30 HD Rear: Reserve 30|HD AL 6069 -or- Raceface ARC 30 HD
Stem Burgtec Enduro MK3, 42mm
Chain SRAM GX Eagle, 12spd
Frame Carbon C MX 150mm Travel VPP™
Tires Front: Schwalbe Magic Mary, 27.5x2.5, Gravity Radial Soft Rear: Schwalbe Magic Mary, 29x2.5, Trail Radial Ultra Soft
Brakes SRAM Maven Bronze Stealth
Rotors Front: SRAM Centerline, 200mm Rear: SRAM Centerline, 200mm
Saddle SDG Bel-Air V3, Max Lux-Alloy -or- WTB Volt
Headset Cane Creek 50 IS Integrated Headset
Crankset Race Face Aeffect R, 165mm -or- Praxis eTor AL, 165mm
Seatpost OneUp Dropper Post, 31.6
Shifters SRAM GX Eagle Single Click, 12spd
Handlebars Santa Cruz e35 Carbon Bar, 800mm
Rear Shock Fox Float X2 Performance Elite, 210x55
Tape/Grips Santa Cruz Bicycles House Grips
Rear Derailleur SRAM GX Eagle, 12spd
Cassette/Freewheel SRAM XG1275 Eagle, 12spd, 10-50t

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Mustard Yellow / Medium / 29-inch front / 27.5-inch rear 192219482330 58-25298-440-3-855-633801-01 HEC27654256S
